Download ProfiCAD 14 Full version for free. This is a permanent license for the software used to design and draft electrical and electronic circuits, PLC control, and pneumatic systems. It's easy to use, lightweight, and the latest version, with installation instructions included.
What is ProfiCAD?
ProfiCAD is a comprehensive electrical design and drafting software, covering everything from electrical diagrams, electronic circuits, and PLC control circuits to pneumatic and hydraulic designs. Its key feature is simplicity; you can start drawing your first design in minutes with minimal learning curve. This provides a lightweight and versatile tool, a great alternative to large, complex, and unnecessarily expensive CAD packages. The program runs smoothly on standard computers, works entirely offline, and uses a one-time license with no monthly subscription fees. It's ideal for electricians, technicians, independent engineers, maintenance teams, as well as teachers and students who need to create electrical documentation daily.

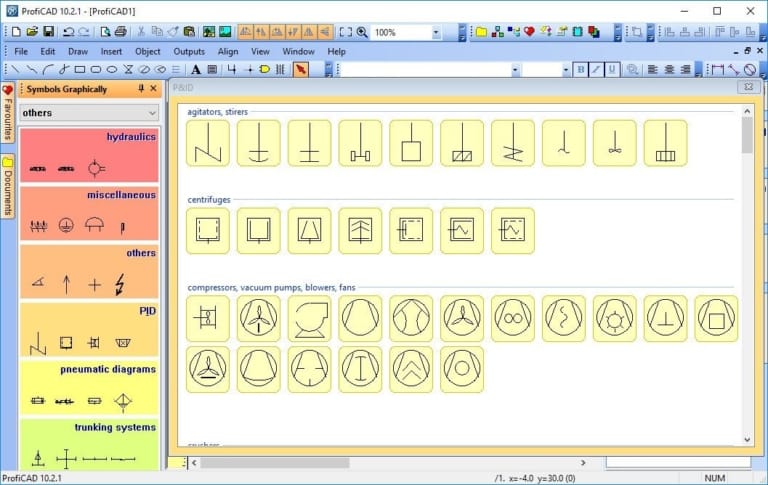

The workflow starts with placing symbols onto the plan from a library of over 2,000 symbols, conforming to international standards like EN 60617. A quick symbol search function allows you to find symbols by simply typing their name. The Intelligent Wiring feature then automatically draws the wires to the device connectors, maintaining the connections even if the device is moved. If a required part isn't in the library, you can open the Symbol Editor and freely draw or modify it, defining wiring connection points as desired. For multi-page projects, Cross-references automatically link wiring and contacts across pages; clicking a reference point jumps directly to the target device. In this new version, the Product Tables have been improved; product names are now written in the symbol's "Type" field, clearly displaying the product type name next to the symbol on the plan. Other product information, such as brand, model, and part number, remains in a single table and can be added to the device with a two-click process.
In terms of documentation, this tool can generate a Bill of Materials (BGM) summarizing all project equipment in a single click, along with a complete list of wires, cables, and terminals. It also creates a Netlist sending circuit connection information for use in printed circuit board design. The finished work can be exported as a DWG or DXF file for further opening in other applications. AutoCAD It works smoothly. The header uses a standard ISO 7200 title block that can be customized with your company logo. Thai text can be printed perfectly on the drawings, and multi-page or entire project drawings can be printed at once.
Key Features
1. Drawing and Wiring Systems
- A library of over 2,000 electrical symbols conforming to EN 60617, with an instant symbol search function.
- The Intelligent Wiring feature automatically connects the wires to the device's terminals and also stores the connected wires when you move the device.
- Automatically generate a new symbol number immediately when a device is copied or deleted from the template.
- You can draw striped wires as desired.
- Symbols are automatically inserted into the circuit.
- Crosshairs display green guide lines to help center objects while dragging. They can be turned off from the View menu.
- Set the scale of the drawing to actual dimensions, and include dimensions for floor plans and mechanical drawings.
2. Symbol Library and Management
- The Symbol Editor allows you to draw new symbols or modify existing ones, and freely define connection points.
- Product tables store product information such as brand, model, part number, current, and number of poles in a single table, then fill in the Symbols with two clicks.
- Cross-references automatically connect wires and contacts across different pages. Clicking a reference point will jump to the destination symbol.
3. Creating reports and documents.
- Create a Bill of Materials (BIM) summarizing all project equipment in one click.
- List all wiring, cables, including their branches and connected equipment, as well as all terminals.
- Create a Netlist to send circuit connection information for use in printed circuit board design.
4. Compatibility and file management.
- Export your work as DWG and DXF, which can then be opened in AutoCAD or other CAD programs.
- You can insert tables into a floor plan, merge cells, add colors, borders, align text, and automatically adjust the size based on the content.
- Blueprints that do not contain elements specific to version 14 can be saved in version 12/13 format and opened in older versions without any problems.
- The standard ISO 7200 title block can be customized using the Title Block Editor.
- Fully supports Unicode; prints Thai language and special symbols correctly.
5. Advanced system features.
- Layer Management separates objects and controls their display in complex ways.
- Batch printing allows you to print multiple pages of blueprints or an entire project at once.
- The program is lightweight, uses low resources, works completely offline, and does not require a subscription.
What's new
Version 14.1.4 – 10/16/2026
- New Renumber terminals. The Edit → Renumber terminals dialog box works with terminal tabs containing a single terminal and with multiple tabs in projects, where each tab starts counting from 1 instead of skipping tabs continuously as before. If you want continuous counting, you need to set the block's Start number yourself.
- Individual terminals are arranged by position. Terminals using the same reference but distributed in a specific pattern are arranged page by page, from top to bottom and left to right, and counted from 1 to N without having to set the starting number digit by digit.
- Select only the tabs that you want to run new numbers on. If a row in the dialog box is selected, only the selected row will be numbered; the other rows will remain unchanged.
- The Note column alerts you to an error. This column will alert when the reference contains a colon, duplicate terminal numbers, or a symbol that does not have a numeric outlet attribute.
- Explorer and terminal reporting have improved. Explorer now displays terminal numbers. The List of terminals report is sorted by terminal tab and number, and there's a new chapter on Terminals in the guide.
- Crosshairs. When dragging a single object, a green guide line will appear as the center of one object approaches the center of another, aligning the objects horizontally or vertically. This feature can be turned off from the View → Crosshairs menu.
